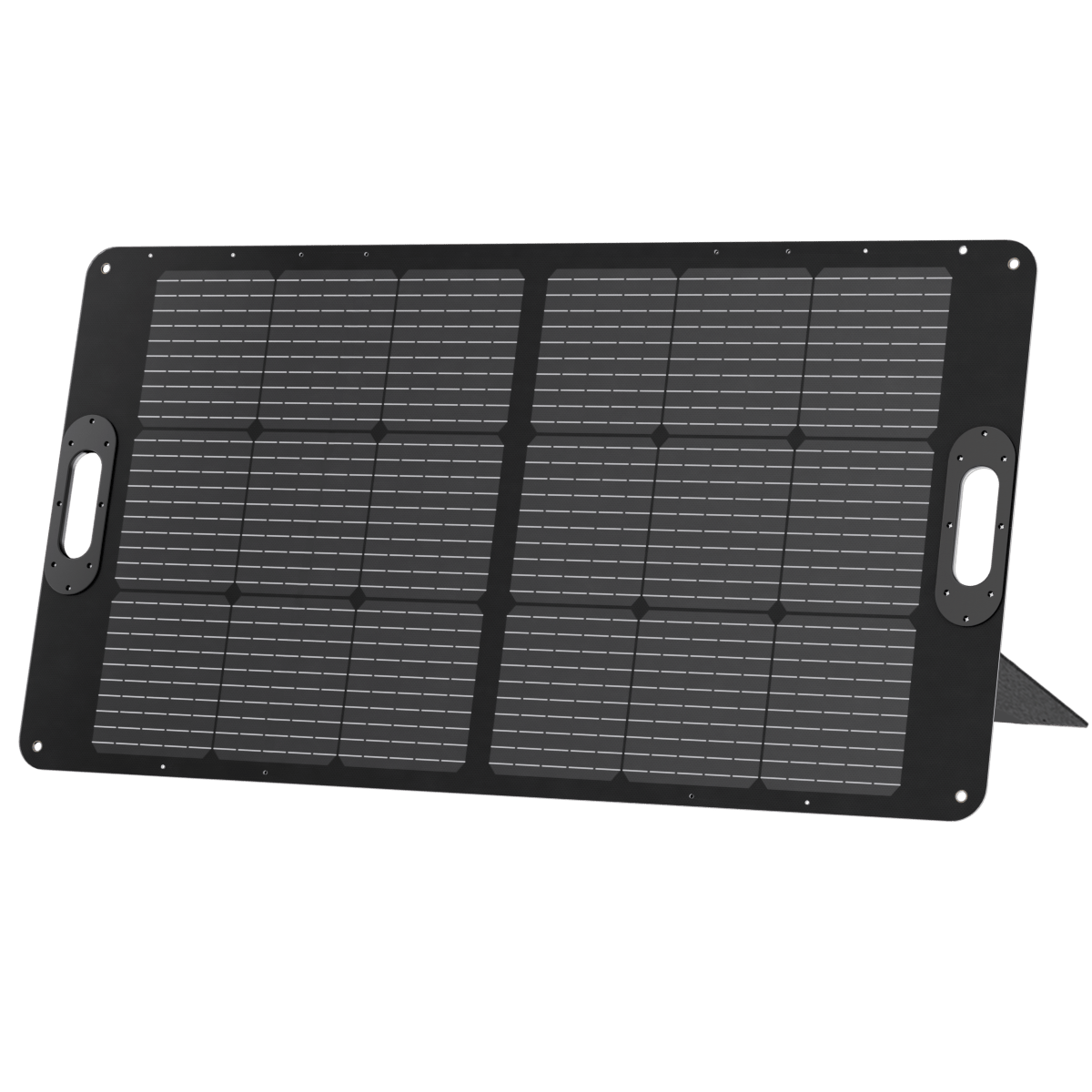

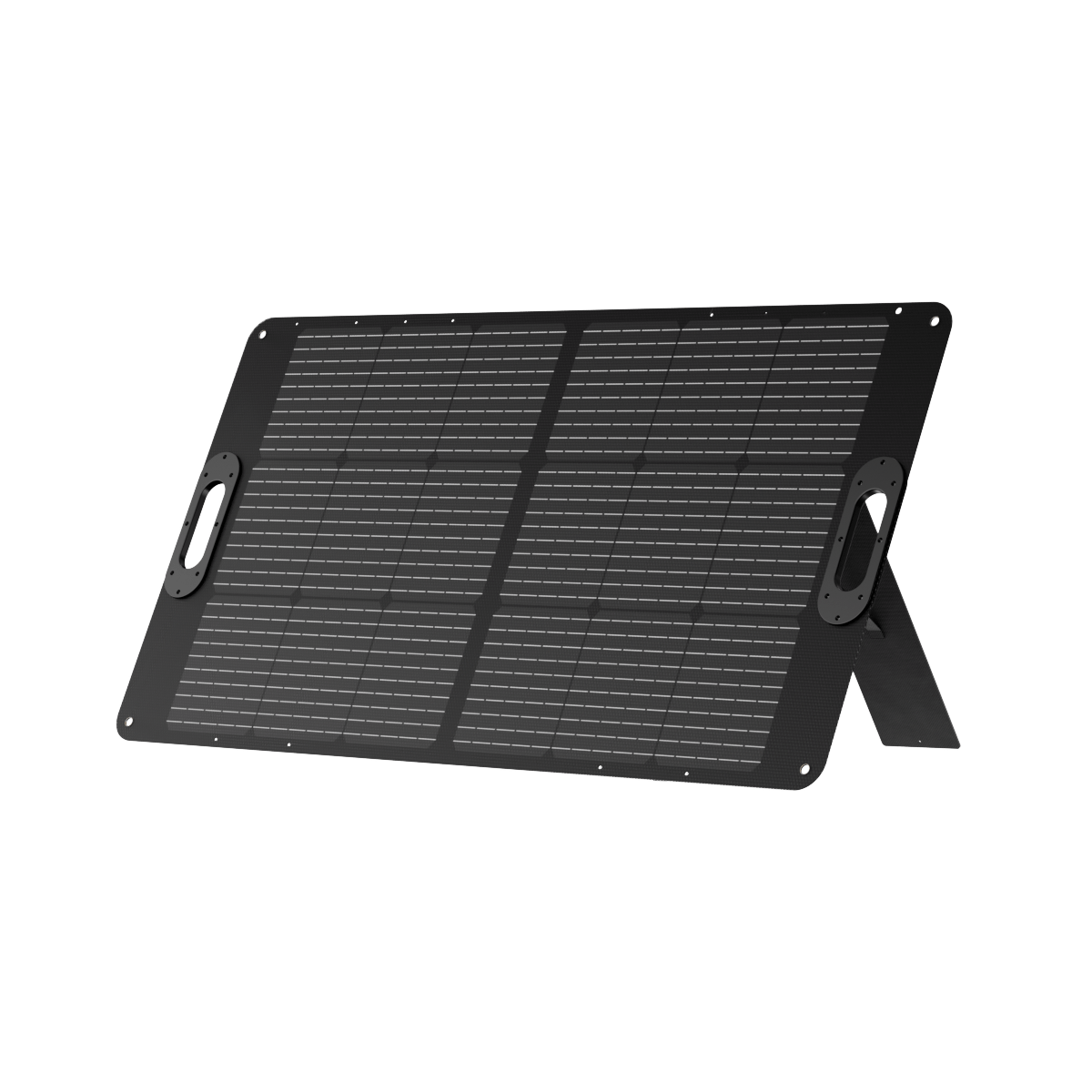

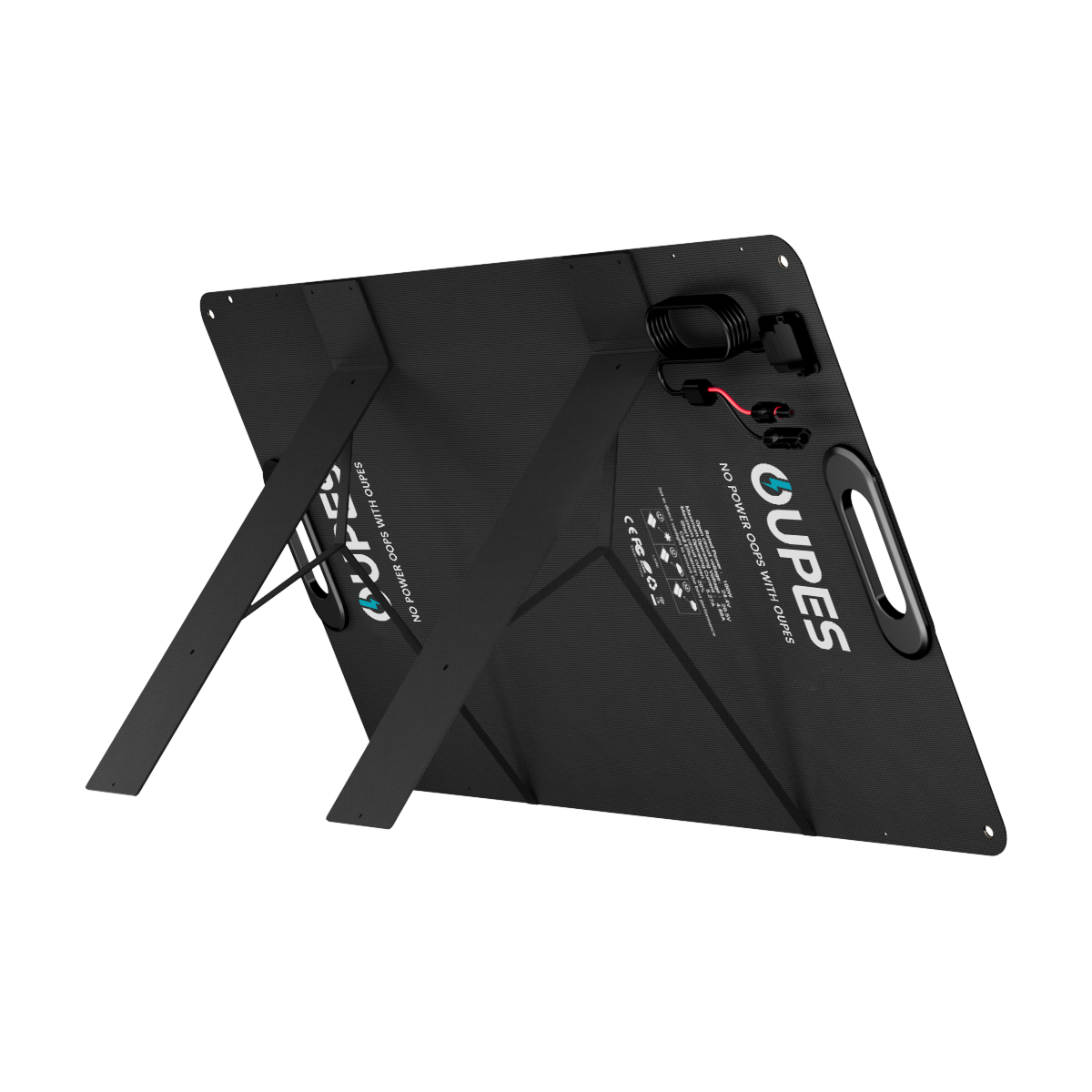

- Portable & Foldable with Kickstand - Folding solar panels allow cables and connectors can be stored in a thin and lightweight pocket. OUPES portable solar panel 100W/200W features easy set-up kickstands that can be placed firmly on any surface ground. Seconds of setup, you can start soaking energy from the sun for your OUPES power station.
- High Conversion Efficiency - OUPES RV solar panel kit has high conversion efficiency of up to 22%, generates more energy and performs better than conventional panels in strong sunlight. Covered by monocrystalline silicon solar cells, Ideally suited for outdoor life and camping.
- Waterproof & Splashproof - Solar panel for camping is IPX4 water-resistant and will protect from water splashing (It is not completely waterproof against heavy rain and flooding, so do not place it under the rain, or soak in water). To prolong the life of the solar panel, be careful not to get it wet during use.

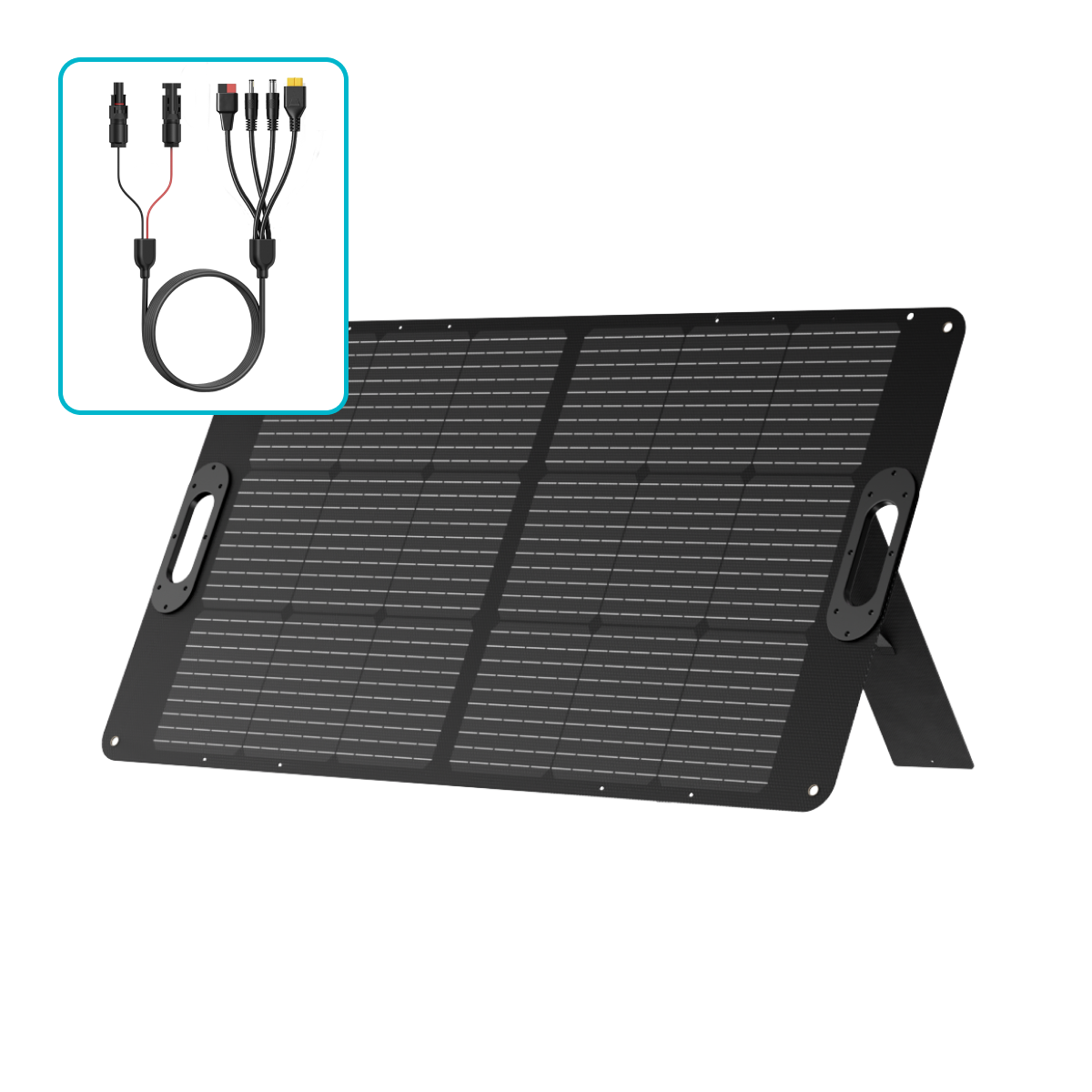

- Compatible & Versatile - OUPES solar panel 100W (rated voltage 18V / rated current 5A / maximum output 100W). Not only for OUPES solar generators 600/1100/1200/1800W but also compatible with other power stations.
SPECIFICATIONS
Solar Panel Specification
100W/240W Solar Panel User Manual
| Rated Power | 105W(±5W)/240W(±5W) |
| Efficiency | 21%–22% |

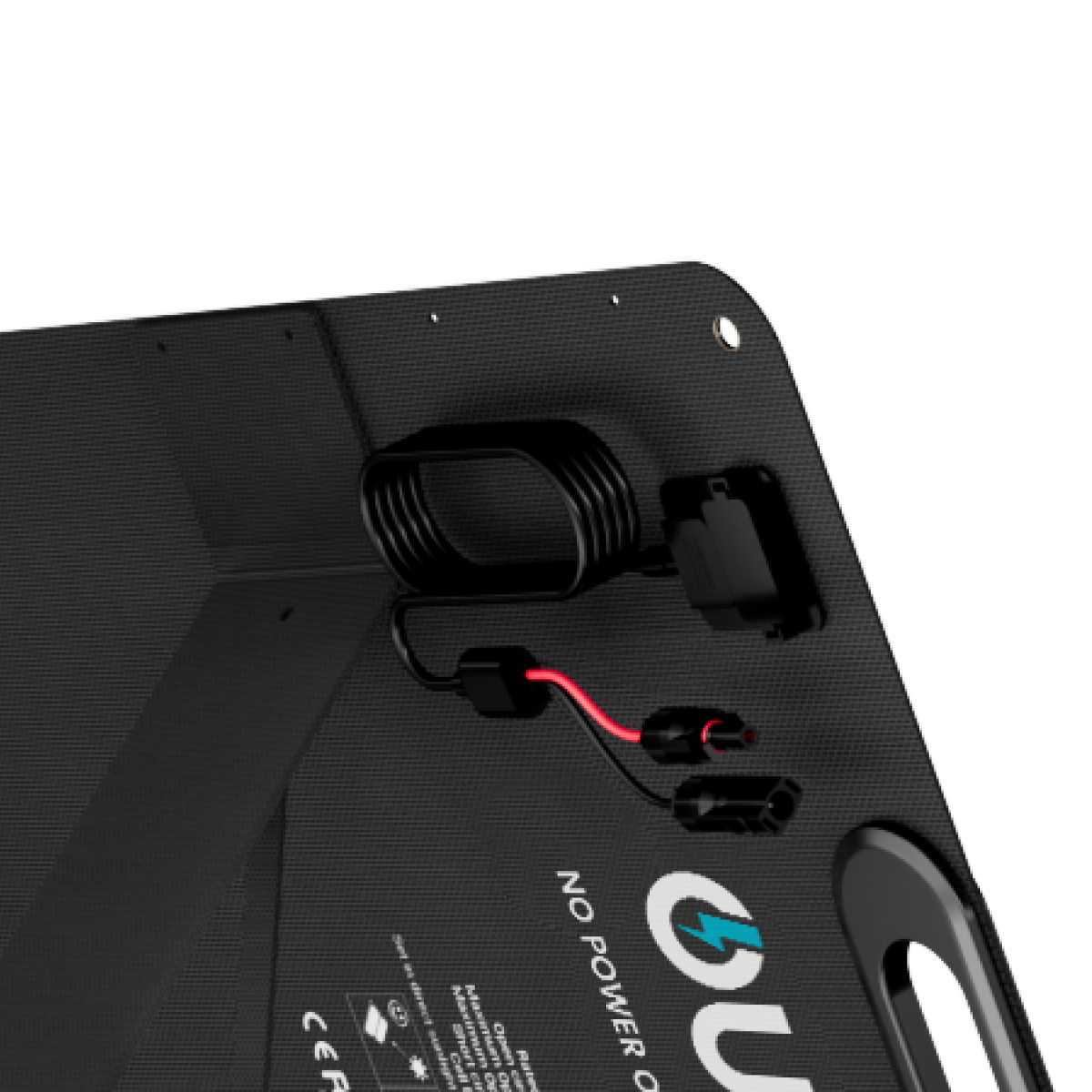

| Connector Type | 7909 DC Connector |
| Open Circuit Voltage | 21.4V (Vmp 18.2V) |
| Working Current | 5.2 A(100W)/ 12.1A(240W) |
| Cell Type | Monocrystalline Silicon |

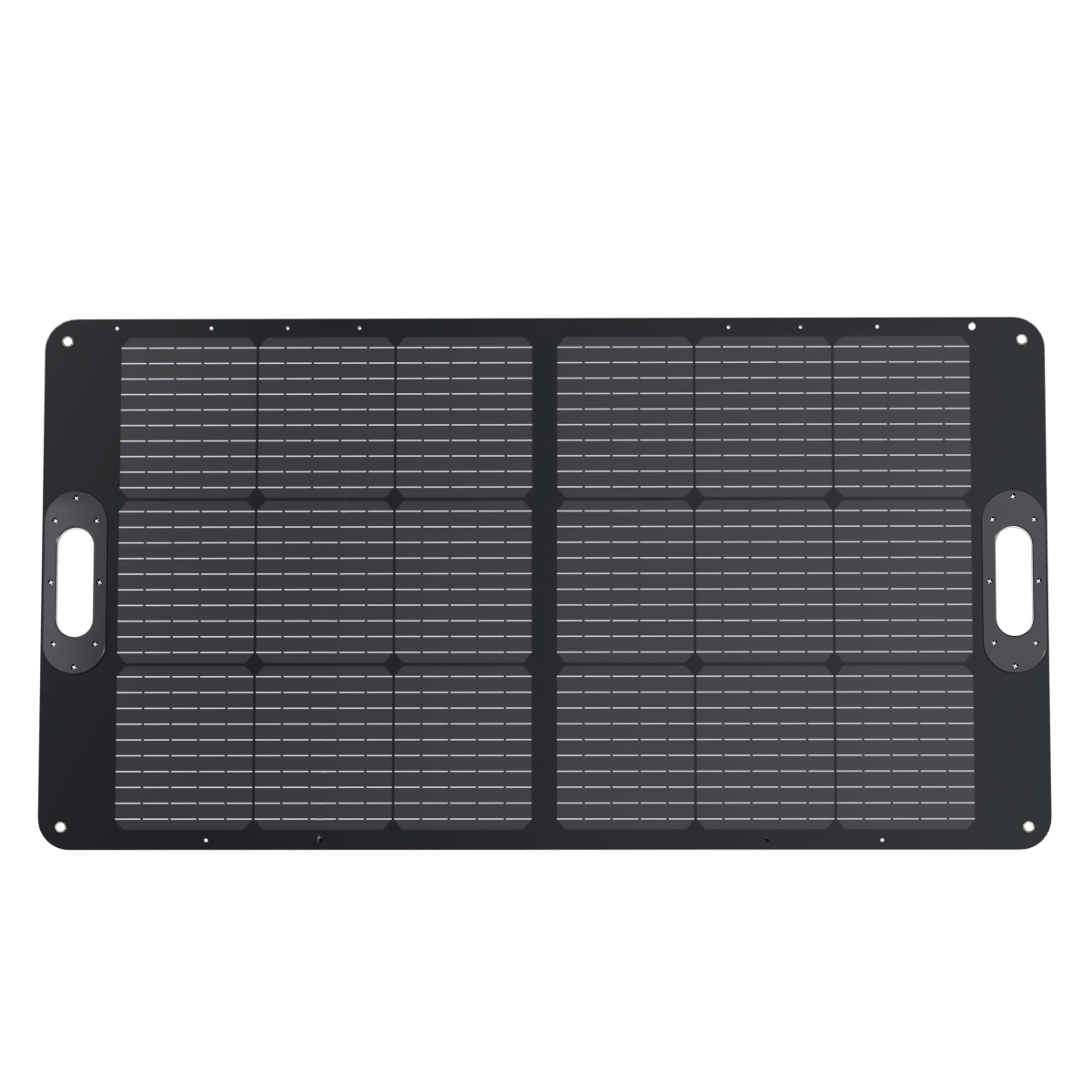

| Unfolded Dimensions | 65.6*16.3*0.2 in(100W)/ 90*25.8*0.2 in(240W) |
| Folded Dimensions | 16.3*14.5*1.4 in(100W)/ 25.8*24.5*1.4 in(240W) |
| Weight | 8 lbs(100W)/ 18.48 lbs(240W) |
| Operating Temperature |
−4°F to 185°F |

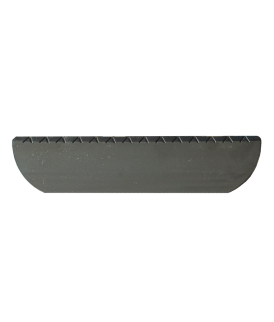

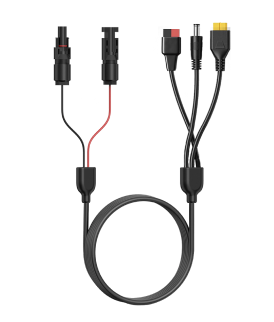

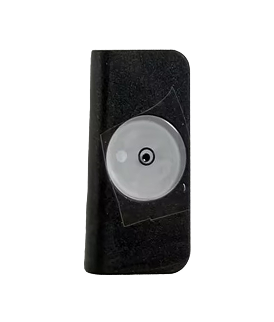

Package Includes

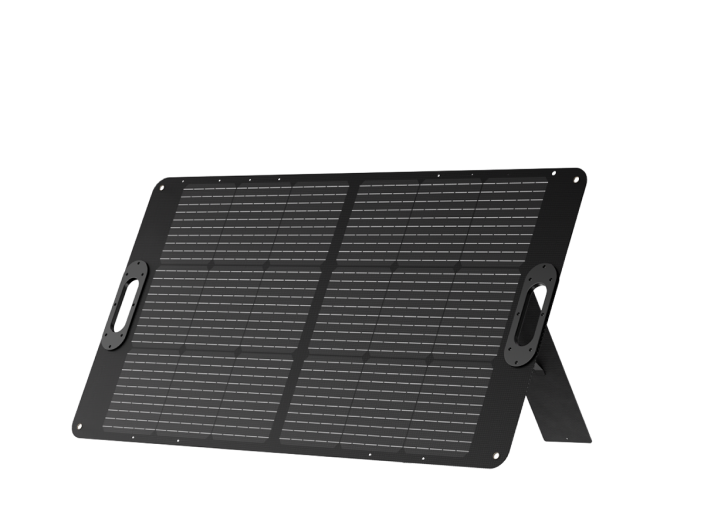

| 100W Solar Panel |
|
| 200W Solar Panels |
|
| 240W Solar Panel |
|
| 480W Solar Panels |
|
