Introduction
In modern solar generator systems and portable power stations—whether for home backup, RV use, or off-grid applications—the choice of DC input connector is often overlooked. Yet it plays a crucial role in safety, efficiency, compatibility and reliability. This guide explores the most common DC input connector types, explains how to check their technical specifications, and shows how they apply in real-world systems such as those from a brand like OUPES.
Why DC Input Connectors Matter in Portable Power Systems
Role of DC Inputs in Power Stations
Portable power stations and solar generators receive DC power from external sources—such as solar panels or car battery inputs—which is then converted by an internal inverter for AC use. The DC input connector is the gateway for that power, so it must be matched properly in voltage, current rating and safety to avoid loss or hazard.
Impact on Efficiency and Safety
A poor or mismatched connector can lead to voltage drop, fire risk or equipment damage. For example, industry analysis shows that low-quality connectors in photovoltaic systems can reduce efficiency by 5-10%.
Importance for Expandability and Compatibility
If you plan to add solar panels, battery banks or modular power elements in the future, choosing a power station with the right DC connector and input range ensures scaling works smoothly—without retro-fits that can void warranties or reduce reliability.
Common DC Input Connector Types You’ll Encounter
MC4 (and Similar PV Connectors)
MC4 connectors are widely used in solar-panel arrays and many portable power stations offer MC4-compatible DC inputs. They allow safe, locked connections for outdoor use and are typically rated for high voltages. One reference asserts MC4 connectors can be rated up to 1500 V DC and 70 A in some versions.
Anderson Powerpole / Anderson SB / SB50 Connectors
These are compact high-current DC connectors often found in battery systems, automotive applications and mobile power stations. They allow rugged unplugged use and are typically rated for 50-600 V and tens to hundreds of amps.
Barrel (Coaxial) DC Plugs
Smaller portable systems may use barrel-style DC jacks (e.g., 5.5 × 2.1 mm or 8 mm) for charger or panel input. While convenient, they are usually limited to lower current and lower voltage—unsuitable for large solar input setups without checking ratings.
SAE / Standard Automotive 2-Pin Connector
SAE two-pin connectors are common in solar “portable panel” kits or trailer applications. Often used for 12 V or 24 V systems, they are less common for higher-voltage solar arrays but still found for mobile input to power stations.
Other Specialty DC Connectors
There are many specialty or industrial DC inputs—such as M8/M12 connectors, or high-voltage DC couplers rated for 600 V-1500 V. For most consumer portable power stations the types above cover the primary use-cases.
Key Specifications and Ratings to Check
Voltage Rating
Ensure the connector’s rated voltage matches or exceeds the system input voltage (e.g., 12 V, 24 V, or higher string voltages up to 600–1500 V). Using a lower-rated connector can lead to breakdown.
Current / Amperage Rating
The connector must support the maximum current drawn by the system under peak solar input or battery charging conditions. Underrated connectors may overheat.
Polarity and Locking Mechanism
Look for polarization (to prevent reverse hookup) and a locking mechanism (for outdoor use). MC4 connectors lock; barrel plugs may not. Incorrect polarity can damage electronics.
Environmental Rating (IP, UV, Temperature)**
For outdoor solar inputs, connectors should meet IP65/IP67/IP68 standards and resist UV and wide temperature ranges. Weatherproofing ensures long-term reliability.
Comparison Table: Major Connector Types and Their Uses
| Connector Type | Common Use Case | Voltage / Current Example Rating | Advantages & Limitations |
|---|---|---|---|
| MC4 | Fixed solar panel arrays / portable stations with solar input | Up to 1500 V DC, ~70 A | Weather-proof & high-voltage capable; requires matched connectors |
| Anderson Powerpole / SB50 | Battery bank inputs, mobile rigs, RV/vehicle power stations | 50-600 V DC, tens-hundreds A | Robust and detachable; may be bulky |
| Barrel DC Plug | Small-scale panels, indoor chargers, compact systems | 12-48 V DC, a few amps | Simple and low-cost; limited current and outdoor durability |
| SAE 2-Pin | Portable panel kits, trailer power, low-voltage solar input | 12-48 V DC, moderate current | Easy to use; not suitable for high-voltage string arrays |
Best Practices When Installing or Using DC Input Connectors
Match Connector to System Voltage and Current
Never assume a connector is sufficient—verify ratings against your input configuration. For example, if your portable power station lists “solar input: 18-140 V DC, 15 A max”, the connector must support those specs.
Use Proper Cable Size and Termination
Even the best connector fails if paired with undersized cable. Voltage drop and heat buildup increase risk. Use appropriately sized conductors and tight terminations.
Check Polarity, Locking and Weather Sealing
Polarity reversal or loose locking can cause arcing or damage. For outdoor installations, make sure seals and locking mechanisms are intact to avoid moisture intrusion.
Follow Manufacturer Guidelines for Portable Power Stations
Brands like OUPES publish input ranges and connector compatibility. Follow these guidelines and avoid mixing incompatible connector types or using mismatched parts that void warranty.

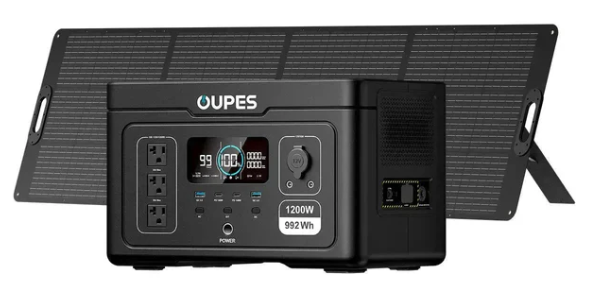

How OUPES Portable Power Stations Handle DC Input Connections
OUPES portable power stations typically support multi-mode charging: AC and DC (via solar or other DC input). They provide clearly specified DC input ranges (for example 18-140 V DC, 15 A max) and recommend compatible connector types. Ensuring the correct connector, cable size and installation method aligns with their safety and performance goals.
With a proper DC connector setup, these systems allow efficient solar recharging, expandability and long-term reliability—especially important for home backup, RV power, and off-grid applications.
FAQ
1. Can I just use any DC connector with my power station?
No. The connector must match the voltage, current rating and system compatibility. Using an undersized or non-locking connector can lead to performance loss, safety hazards or voided warranties.
2. Why are MC4 connectors preferred in solar applications?
MC4 connectors provide secure locking, high-voltage ratings and weather-proofing—making them well suited to solar panel strings and systems that require durability outdoors.
3. Do portable power stations always use MC4 inputs?
Not always. Some use Anderson Powerpole, SAE, barrel plugs or proprietary inputs depending on size and design. Always check the specifications of your unit.
4. How do I know if the cable size is correct for my DC input connector?
Check the maximum current rating of the connector and power station input. Then select cable AWG or mm² size with voltage drop and insulation rating accordingly. For high current, thicker cable is needed to avoid overheating.
5. Can I add a longer cable or adapter for my DC input?
Yes—but be cautious. Longer cables increase voltage drop and must be appropriately rated for current and insulation. Adapters or mismatched connectors can introduce resistance and risk.
