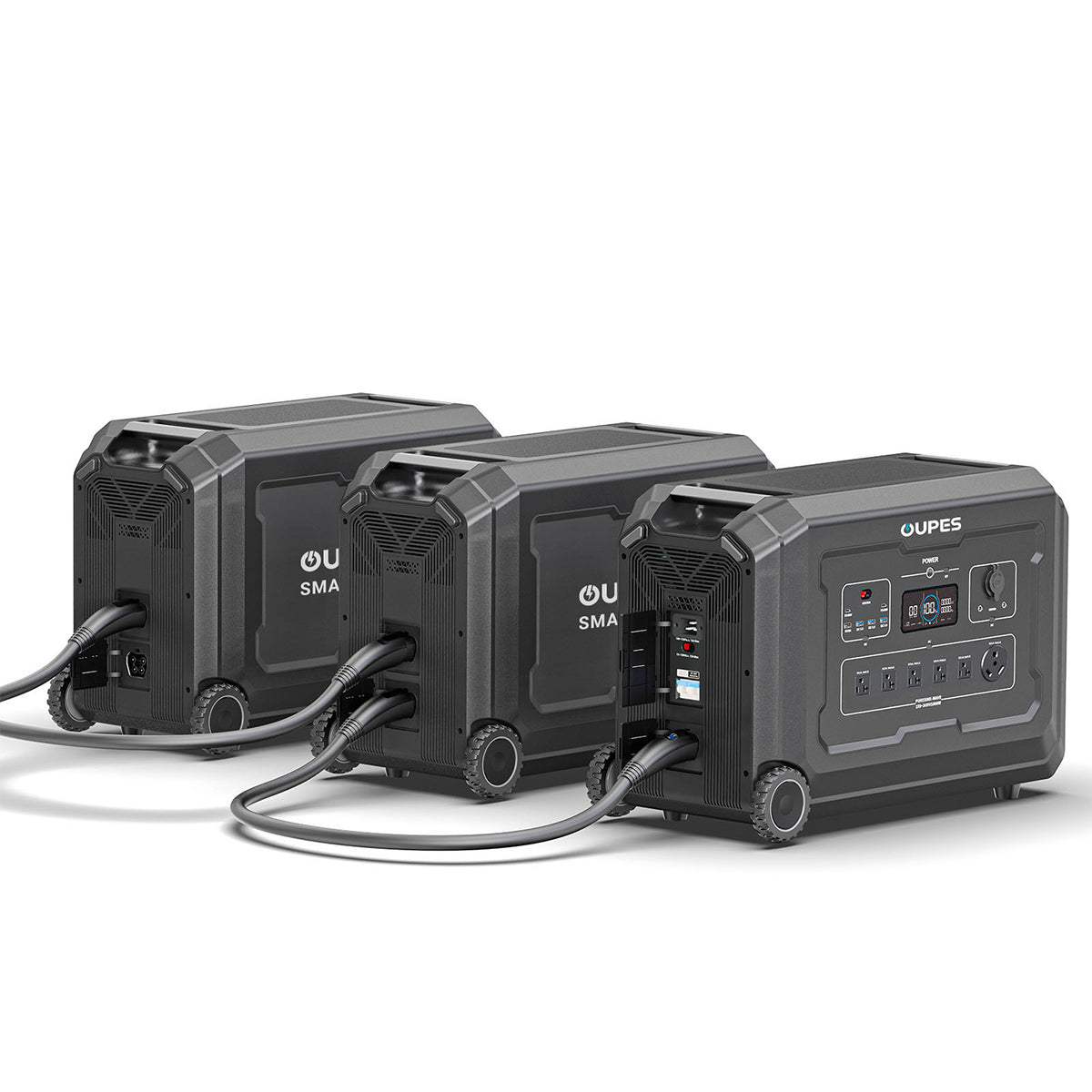

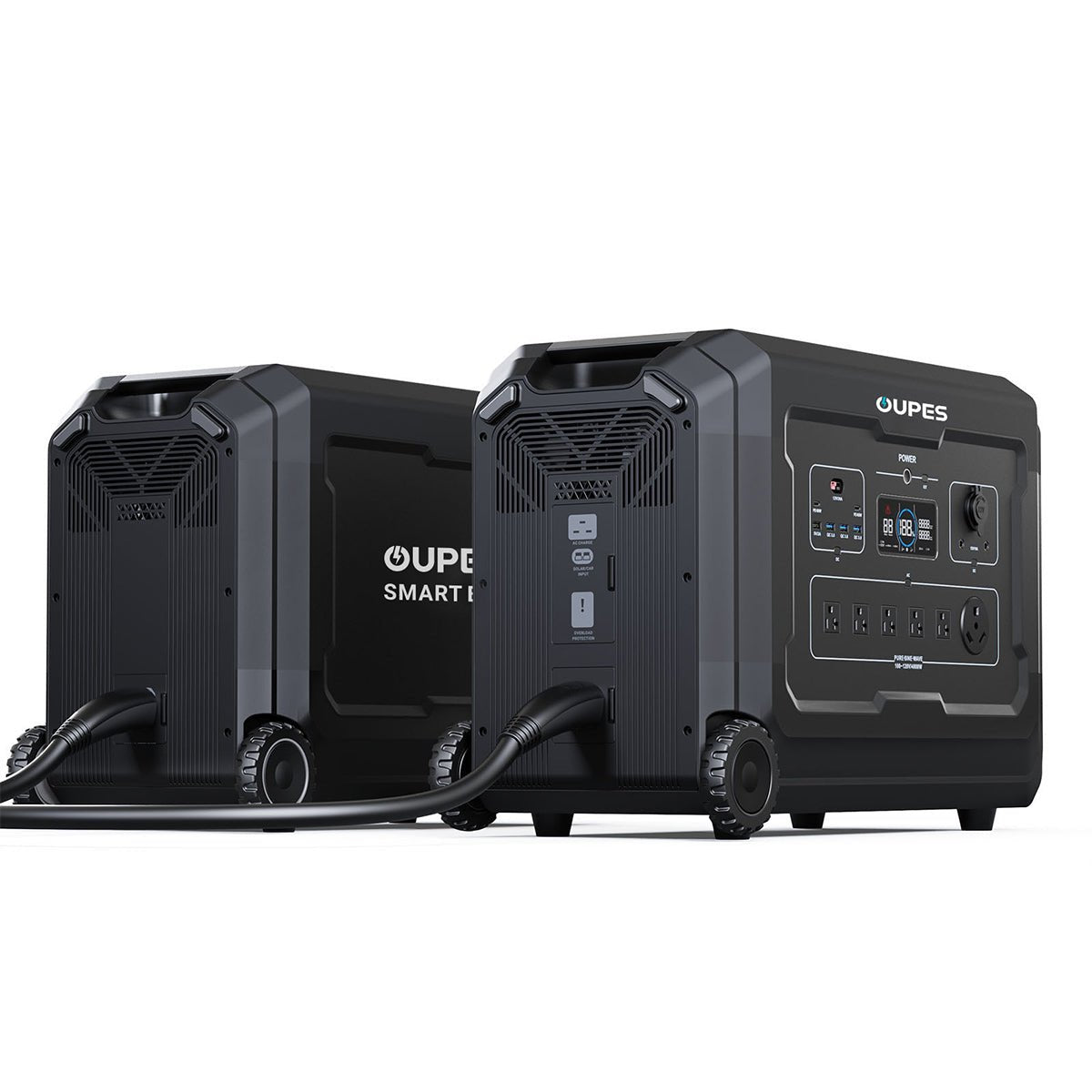

Mega 5 & B5 Extra Battery | Home Backup Battery
- 10,080Wh Capacity | 4,000W AC Pure Sine Wave Inverter (7,000W Surge)
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- Expandable Up to 45.36kWh with 8 B5
- 16 Outputs For Multiple Devices
- 6 Ways to Recharge (AC/Solar/Car/AC+Solar/Generator/EV charger)
- Smart HD LCD display
- Fastest Charging Speed: Fully charge in 1.3 hours
- 3,900W Max. Input charging speed
- Anderson Recharging Input
- Seamless UPS Backup (2,200W Max)
- Smart Control & Monitor in OUPES App
30 Days Money-Back Guarantee
The customer will be refunded if the purchase is made in 30 days.
Fast
shipping
30-Days
Money Back
36-Months
Warranty
Lifetime customer
support
Listen to the Pros
During the dark months, I can use the Mega 5 to power my house. Alaska Prepper
OUPES Mega 5 is the large Solar power station for an emergency or off grid needs. southernprepper1
We couldn't be more excited to have this thing. This was like the first purchase that we wanted to make when we first got in here. Life on Promise View Acres
Your primary focus is just getting a lot of battery and a lot of inverter on the cheap because it doesn't really get much cheaper than this for an all-in-one unit. HOBOTECH
This is an awesome unit and it's my top recommended one for 120 volt only for those essential powers. Minute Man Prep
Versatile Power for Any Scenario
Whether it’s backup power or powering high-demand professional tools, Mega 5’s 5,040Wh battery and 4,000W inverter handle everything—from home appliances to heavy-duty equipment—no matter the need.
Expandable Power for Weeks-Long Outages
With expandable capacity up to 45.36kWh, Mega 5 prepares you for outages lasting 2 to 20 days, keeping essential appliances running without interruption.
Run Your Entire Household Effortlessly
Mega 5’s 4,000W power and 7,000W surge capacity keep your entire household running, ensuring you don’t miss a beat during outages.
-
4000W
Rated Power -
7000W
Surge
Uninterrupted Power, Always Ready
Mega 5’s 2,200W max UPS backup automatically kicks in when the power goes out, ensuring uninterrupted power to your critical devices.
6 Ways to Recharge
Mega 5 features the OUPES' latest Multi-charging Tech and it can deliver record-breaking speeds at 3,900W. At the same time, It is also with equipped EV charging ports, so you can charge at thousands of EV stations around the US.
16 Ports for All Your Devices
Up to 16 output ports for every need. Simply plug in what you want to charge and press the button, limitless power is available to you. The color LCD screen displays the status of the plant, including the fault code, power remaining, port status, etc.
Anderson Output Port
12V/30A
Type-C Output Ports
PD 60W
USB-A Output Ports
QC 3.0
AC Output Ports
120V/4000W
Car Output Port
12V/10A
5.5mm DC Output Ports
12V/10A
AC TT-30 Output Port
120V/4000W
LCD Display
EV-grade LiFePO4 Battery
Mega 5 uses EV-grade LiFePO4 battery, which can be used for 3500+ cycles at 80% depth of discharge. Combined with OUPES' advanced battery management system, the Mega 5 is incredibly safe and durable.
Embrace the Quiet
Immerse yourself in nature's calmness with our product's minimal noise output, allowing you to savor the serenity
55db
Control Your Power in Hands
No need to get up from your comfy sofa - you can operate Mega 5 from your mobile phone conveniently. On OUPES App, you can view and control your power station status, such as real-time input & output, port status, extended battery status, and more.
Integration with home circuits
Building up your home backup system to keep your essential circuits running when a blackout hits. Ensure peace of mind with the easily integrated whole-home backup kit: OUPES Mega 5, Pro/Tran 2® Transfer Switch Kit, and NEMA TT-30P to L14-30R Cord.
Specs
BATTERY
- Basic Capacity 5040Wh
- Expansion Capacity Up to 45.36 kWh with 8 B5
- Type LFP (LiFePO4)
- Cycles > 3500 cycles to 80%
- UPS/EPS < 20ms, 2200W
- BMS Yes
OUTPUT
- AC Output Power 4000W (Surge 7000W)
- Inverter Type Pure Sine Wave
- AC Outlets 5*NEMA 5-20R (120V/20A)
1*TT-30R (120V/30A) - USB-A Output 4*USB-A (QC 3.0)
- USB-C Output 2*USB-C (PD 60W per port)
- 12V DC Output 2*DC 5521 (12V/10A)
1*Anderson (12V/30A)
1*Car Lighter (12V/10A)
INPUT
- Fast AC Charging 1800W
- Slow AC Charging 900W
- Solar Charging 2100W Max, 12-150V DC
MPPT: 18-140V, 15A Max - AC + Solar Charging 3900W Max
- EV Charging 1800W, 100~120Va.c 16A Max
GENERAL
- Connectivity WiFi 2.4GHz/Bluetooth
- App Control Yes
- Net Weight 112.4lbs (51.0 kg)
- Dimensions (L x W x D) 25.2 x 11.9 x 17.2in (641.5 x 304.5 x 437.5mm)
- Operating Temperature 0℃~40℃ (30℉~104℉)
- Storage Temperature 0℃~40℃ (30℉~104℉)
- Pass-through Charging Yes
- Certification UN38.3.MSDs
- Warranty 36 Months
BATTERY
- Basic Capacity 5040Wh
- Type LFP (LiFePO4)
- Cycles > 3500 cycles to 80%
- BMS Yes
OUTPUT
- Inverter Type Pure Sine Wave
INPUT
- AC Charging rechargable when connected with main unit
GENERAL
- Connectivity WiFi 2.4GHz/Bluetooth
- App Control Yes
- Net Weight 96.67lbs (43.8kg)
- Dimensions (L x W x D) 25.2*11.9*17.2in(641.5*304.5*437.5mm)
- Operating Temperature 0℃~40℃ (30℉~104℉)
- Storage Temperature 0℃~40℃ (30℉~104℉)
- Certification UN38.3.MSDs
- Warranty 36 Months
POWER
- Maximum Power 240W
- Cell Lamination ETFE (Ethylene tetrafluoroethylene)
- Cell Type Monocrystalline Silicon
- Cell Efficiency Up to 21%
- Open Circuit Voltage (OCV)
24.6V - Short Circuit Current (Isc) 12.3A
GENERAL
- Connector Standard MC4 Connector
- Weight 18.48lb (8.4kg)
- Cable Length 196.8 inches
- Dimensions (Unfolded) 99.5 x 23.2 x 1.4in (2529 x 590 x 35mm)
- Dimension (Folded) 26.1 x 23.2 x 2.4 (665 x 590 x 60mm)
- Operating Temperature -4℉ - 185℉ (-20°C - 85°C)
- Best Working Temperature 77℉ (25℃)
- Warranty 12 Months
In the Box
Mega 5 Portable Power Station ×1
AC Charging Cable ×1
Anderson to Anderson Cable ×1
7909 to Anderson Charging Cable ×1
Car to Anderson Charging Cable ×1
MC4 to Anderson Charging Cable ×1
User Manual ×1
Warranty Card ×1
FAQ
Can I use third party solar panel?
Most of the solar panels on the market are compatible, but you need to check whether the specifications and plug are matched (Within 150V, and the connection port is Anderson), you also can feel free to contact us via email before connecting them.
Actually, we suggest customers connect the OUPES solar panel with the OUPES solar generator, as there is already a solution provided in the generator and also the third-party solar panel.
Different companies' solutions may conflict, causing charging not to be done as efficiently as desired although they are universal.
Can I use a third party expanded battery?
No, the Mega 5 can't be expanded with third party battery. Please choose B5 expanded battery with it.
What types of battery does OUPES use?
LiFePO4 - The Battery is estimated to have over 80% of your original capacity after 3500 cycles, with a gradual reduction after that. (Note: this doesn't mean the battery only has a 3500 cycle life span. It means that up until 3500 cycles, the unit can perform at its best. However, due to battery degradation there will be a gradual decline in performance after 3500 cycles.)
It has 6 times of longer lifespan than ordinary lithium batteries. LiFePO4 battery is much safer, more stable and more eco-friendly with no heavy metal elements that are harmful to people.
How do I know if the Mega 5 can power my device?
The OUPES Mega 5 can run any device that requires less than 120V and 4000W. You can calculate the charge time using the following formula: 5040Wh* 0.85 / operating power of your device.
Does it support pass-through charging?
Yes, the OUPES Mega 5 supports pass-through charging without damaging the battery.
Is it waterproof? Is it fireproof?
- OUPES Mega 5 is not waterproof. Please make sure to shelter it from rain
- The outer case of our products is made of fireproof material UL 94-V0
How to keep this product when it is not used for a long time?
1. Maintain the battery at a charge level between 60% and 80% of its rated capacity. It is recommended to check and recharge the battery every 3 months to keep it within this range.
2. Store the battery in a dry and cool environment with a temperature range of 0 ℃ to 40 ℃ (32 ℉ to 104 ℉).
3. Ensure the storage area has a humidity level between 0% and 60%.
4. Avoid exposing the battery to corrosive substances, as they can damage the battery's integrity and performance.
5. Keep the battery away from fire hazards and heat sources to prevent potential damage or overheating.
By adhering to these guidelines, you can help preserve the battery's condition and extend its overall lifespan during extended periods of inactivity.
Does the OUPES Mega 5 package come with all the charging cables?
Yes, the OUPES Mega 5 package will come with all the charging cables, you don't need to purchase any extra cables.
Do you charge shipping fee?
We provide free shipping service in the continental United States. The prices on our website will deliver the product to your door
Is the solar panel waterproof? Can I use an extension cable?
We have waterproof treatment for solar panels, but I do not recommend you use them in the rain. Portable solar panels cannot be fully waterproofed like hard solar panels. Long-term exposure to rain may reduce cell efficiency. The length of the solar charging cable is 16ft long. We also provide the extensions on the website. Please note that the charging efficiency may be reduced due to the charging cable being prolonged. It might require more time to finish charging with extension cables.
