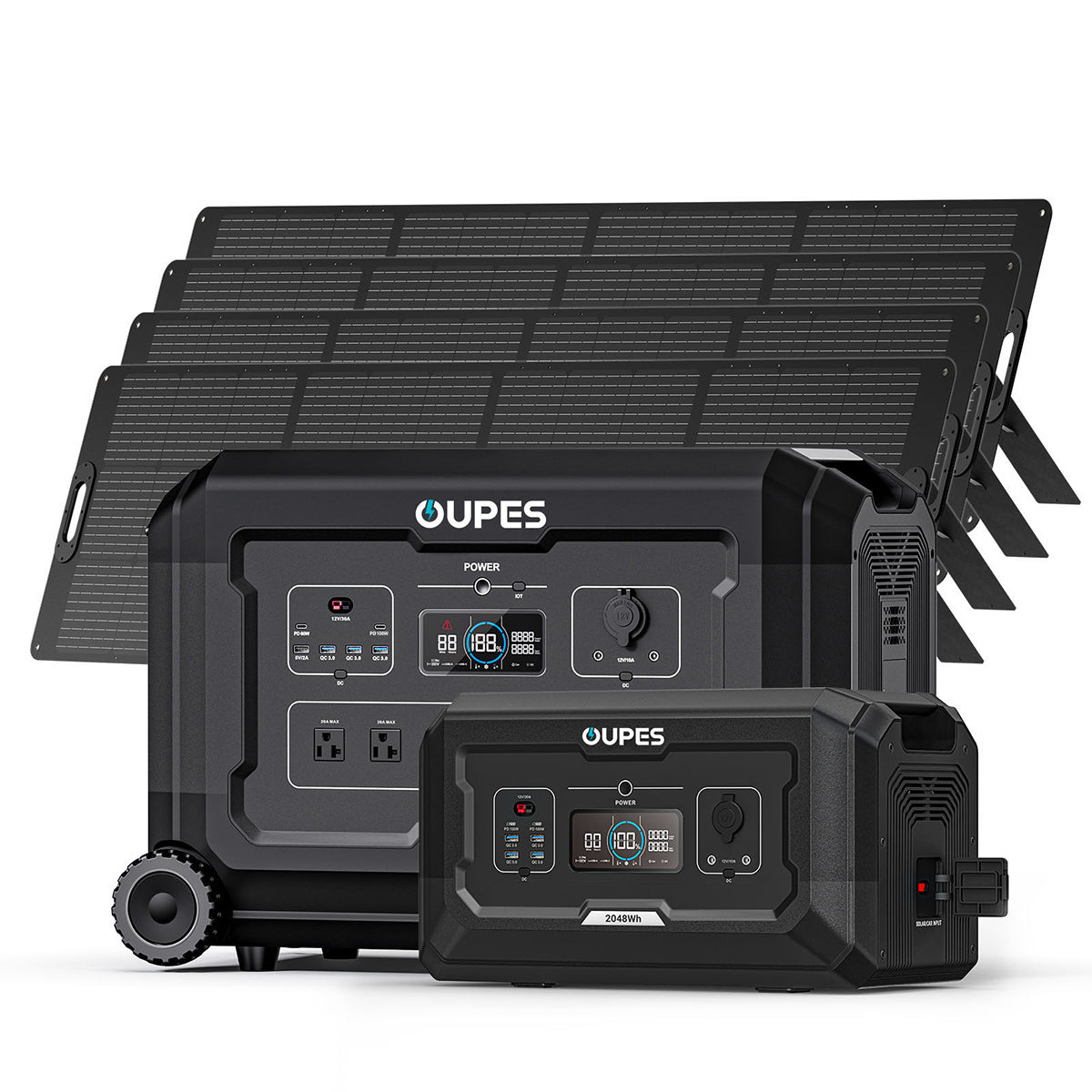

Mega 3 + B2 Extra Battery + 4*240W Solar Panel | Solar Generator Kit
- 3,072Wh Capacity | 3,600W AC Pure Sine Wave Inverter (7,000W Surge)
- Fully recharge in 0.8 hour with 3,900W Max. Input (AC+solar)
- Expandable Up to 15.36kWh with B2 * 6
- Seamless UPS Backup (2,200W Max)
- Adjustable Recharge (900W-1,800W AC input)
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- 16 Outputs For Multiple Devices
- Smart Control & Monitor in OUPES App
Christmas Sale
20ft 12AWG Solar Panel Extension Cables
$29.90
Fast
shipping
30-Days
Money Back
36-Months
Warranty
Lifetime customer
support
Listen to the Pros
You can learn all about the Mega 3 plus B2 in this video. AveRage Joe
The Mega 3 can come in handy during power grid failures or power outages. The Mac's
Having a system like this, is essential for backups if you have a freezer full of meat. An American Homestead
The Mega 3 can help you weather power outages and keep your essentials running. Alaska Prepper
Reliable Power for Home Backup & RV Trips
Keep the lights on at home and power up on the road. Mega 3’s 3,600W output and 3,072Wh capacity deliver versatile power for home backup and RV escapes, so you’re always prepared.

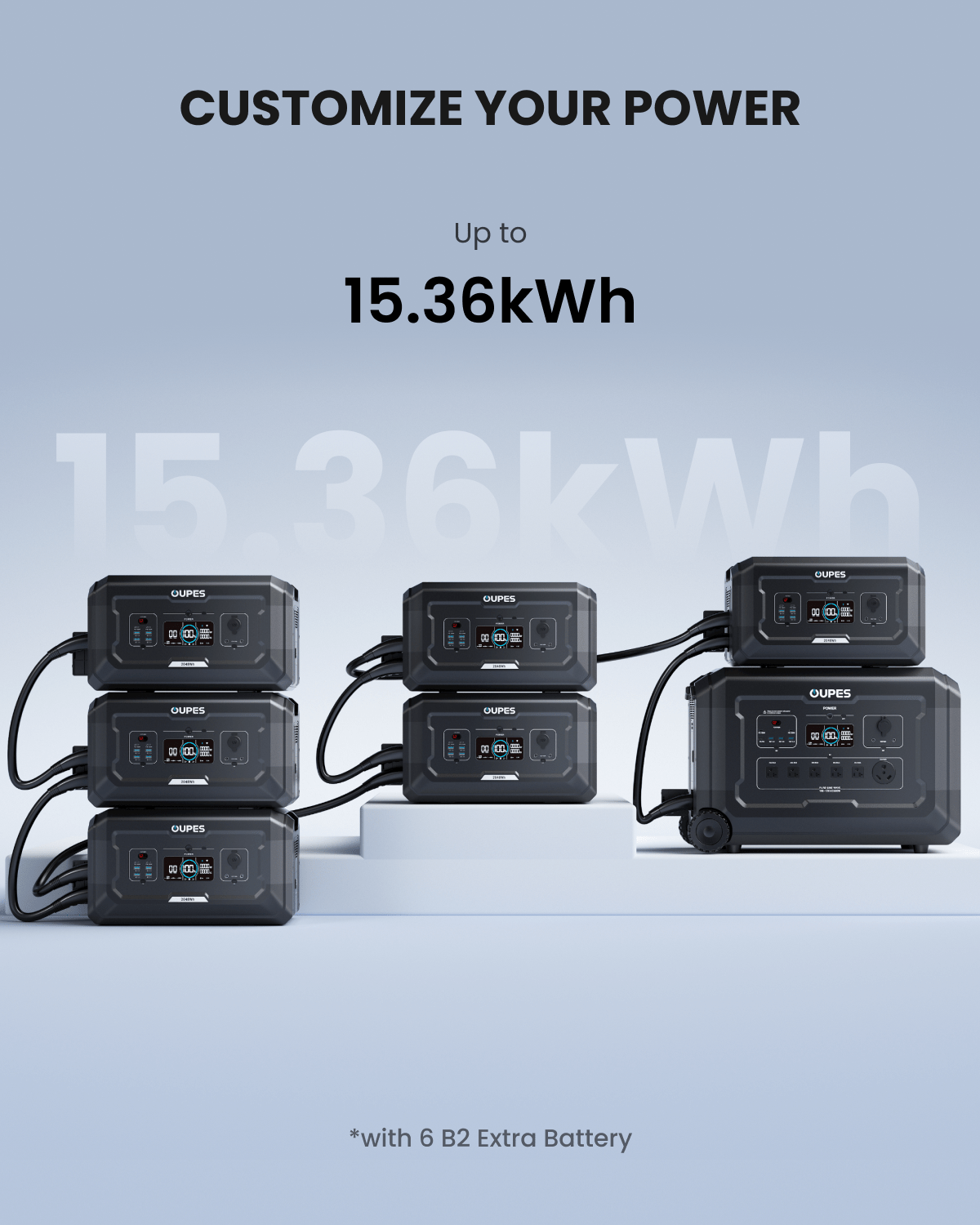

Ultimate Flexibility for Whole Home Backup
Mega 3 scales with you! Expand up to 15.36kWh from 3.07kWh with 6 B2 extra batteries, giving your entire home the backup it needs – when and where you need it most.
-
5.12kWh
with 1x B2 Battery -
7.16kWh
with 2x B2 Battery -
9.21kWh
with 3x B2 Battery -
11.26kWh
with 4x B2 Battery -
13.31kWh
with 5x B2 Battery -
15.36kWh
with 6x B2 Battery
- 1
- 2
- 3
- 4
- 5
- 6
Household Power, No Compromises
Cook your meals, warm your home, and charge up every device. Mega 3’s 3,600W output and 7,000W surge handle it all – so you can keep life as usual.
-
3,600W
Rated Power -
7,000W
Surge
Full Charge in Just 0.8 Hours
Need a fast recharge? With 2,100W solar and 1,800W AC charging, Mega 3 goes from 0% to 100% charged in 0.8 hours – faster than your coffee brews!
4 Ways to Recharge
Whether you’re plugged in, off the grid, or on the go, Mega 3’s AC, solar, AC+Solar, and car charging options give you power without limits.
-
AC input
1,800W -
Solar Charging
2,100W -
AC + Solar Charging
3,900W -
Car Charging
12V

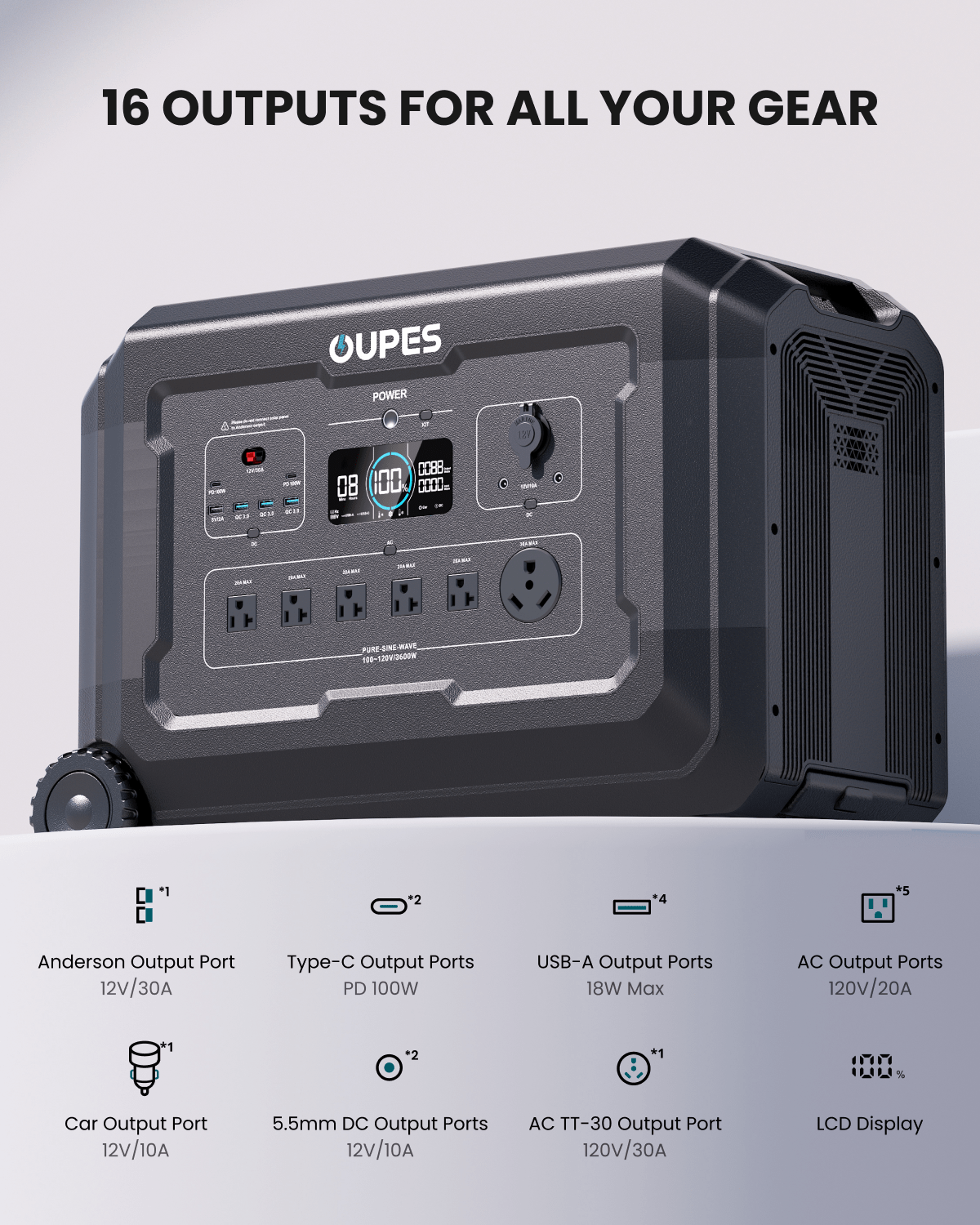

16 Outputs for All Your Gear
No need to prioritize! With 16 versatile ports, Mega 3 lets you charge and run multiple devices all at once – perfect for any setup, big or small.
Anderson Output Port
12V/30A
Type-C Output Ports
PD 100W
USB-A Output Ports
18W Max
AC Output Ports
120V/20A
Car Output Port
12V/10A
5.5mm DC Output Ports
12V/10A
AC TT-30 Output Port
120V/30A
LCD Display
Built to Last
With an EV-grade LiFePO4 battery that lasts over 3500 cycles to 80%, Mega 3 offers 10 years of trustworthy power for both your home and RV lifestyle.
3500+ Charge Cycles to 80%
10 Years Maintain good health for at least
Ready for Any Power Disruptions
2,200W UPS switches over in a lightning-fast 20ms, so your home stays powered up and life goes on like nothing happened.

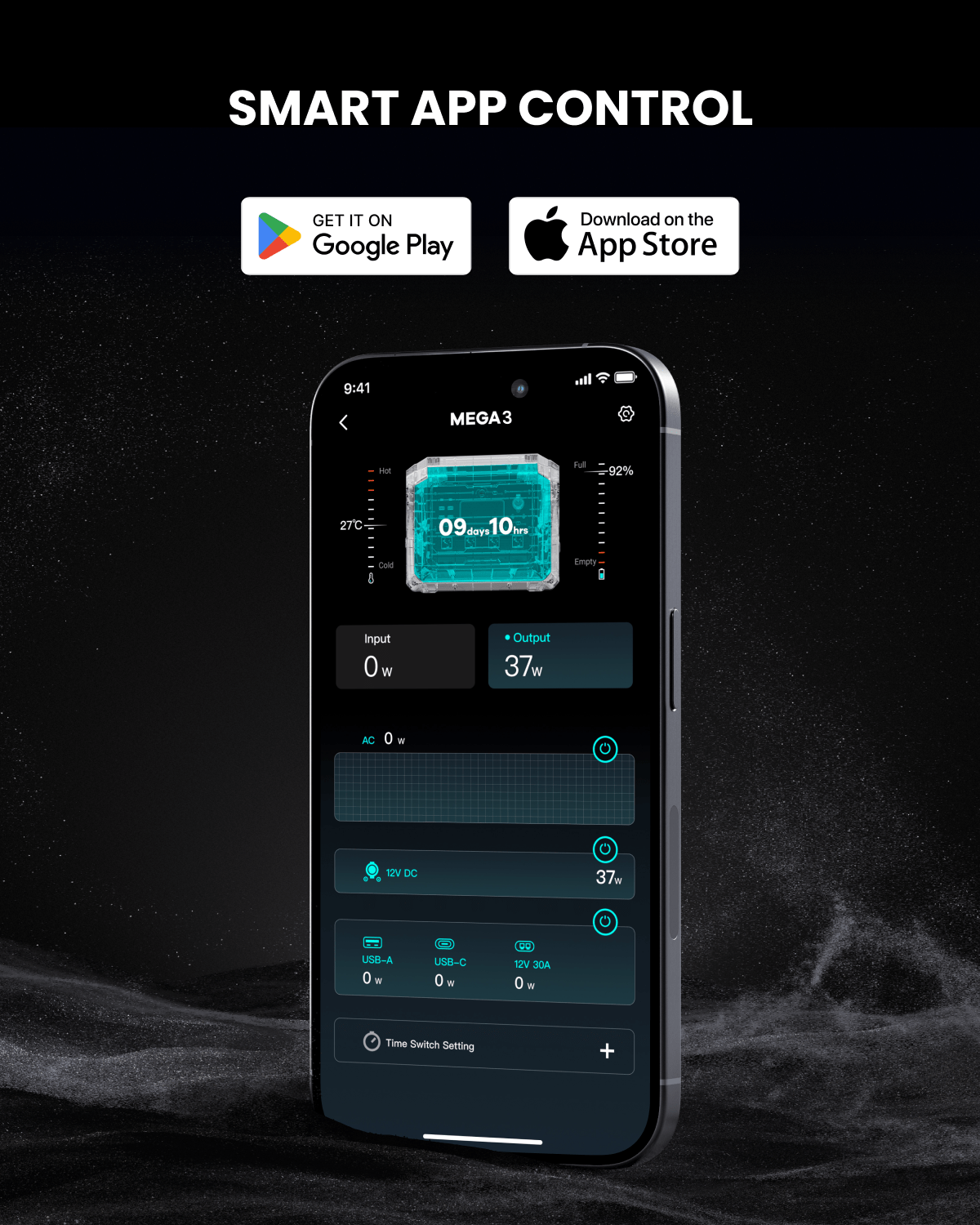

Control Your Power in Hands
No need to get up from your comfy sofa - you can operate Mega 3 from your mobile phone conveniently. On OUPES App, you can view and control your power station status, such as real-time input & output, port status, extended battery status, and more.
Specs
BATTERY
- Basic Capacity 3072Wh
- Expansion Capacity Up to 15.36kWh with 6 B2
- Type LFP (LiFePO4)
- Cycles > 3500 cycles to 80%
- UPS/EPS < 20ms, 2200W
- BMS Yes
OUTPUT
- AC Output Power 3600W (Surge 7000W)
- Inverter Type Pure Sine Wave
- AC Outlets 5*NEMA 5-20R (120V/20A)
1*TT-30R (120V/30A) - USB-A Output 4*USB-A (QC 3.0)
- USB-C Output 2*USB-C (PD 100W per port)
- 12V DC Output 2*DC 5521 (12V/10A)
1*Anderson (12V/30A)
1*Car Lighter (12V/10A)
INPUT
- Fast AC Charging 1800W
- Slow AC Charging 900W
- Solar Charging 2100W Max, 12-150V DC
MPPT: 18-140V, 15A Max - AC + Solar Charging 3900W Max
GENERAL
- Connectivity WiFi 2.4GHz/Bluetooth
- App Control Yes
- Net Weight 83.3lbs (37.8kg)
- Dimensions (L x W x D) 25.2 x 11.9 x 17.2in (641.5 x 304.5 x 437.5mm)
- Operating Temperature 0℃~40℃ (30℉~104℉)
- Storage Temperature 0℃~40℃ (30℉~104℉)
- Pass-through Charging Yes
- Certification UN38.3.MSDs
- Warranty 36 Months
BATTERY
- Basic Capacity 2048Wh
- Type LFP (LiFePO4)
- Cycles > 3500 cycles to 80%
- BMS Yes
OUTPUT
- Inverter Type Pure Sine Wave
- USB-A Output 4*USB-A (18W Max)
- USB-C Output 2*USB-C (PD 100W per port)
- 12V DC Output 2*DC 5521
1*Anderson (12V/30A)
1*Car Lighter (12V/10A)
INPUT
- AC Charging rechargable when connected with main unit
- Solar Charging 2100W max, mppt:18V-140V, 15A max
GENERAL
- Connectivity WiFi 2.4GHz/Bluetooth
- App Control Yes
- Net Weight 41.8lbs (18.9kg)
- Dimensions (L x W x D) 18.1*10.6*10.0in (460*270*255mm)
- Operating Temperature 0℃~40℃ (30℉~104℉)
- Storage Temperature 0℃~40℃ (30℉~104℉)
- Certification UN38.3.MSDs
- Warranty 36 Months
POWER
- Maximum Power 240W
- Cell Lamination ETFE (Ethylene tetrafluoroethylene)
- Cell Type Monocrystalline Silicon
- Cell Efficiency Up to 21%
- Open Circuit Voltage (OCV) 24.6V
- Short Circuit Current (Isc) 12.3A
GENERAL
- Connector Standard MC4 Connector
- Weight 18.48lb (8.4kg)
- Cable Length 196.8 inches
- Dimensions (Unfolded) 99.5 x 23.2 x 1.4in (2529 x 590 x 35mm)
- Dimension (Folded) 26.1 x 23.2 x 2.4 (665 x 590 x 60mm)
- Operating Temperature
-4℉ - 185℉ (-20°C - 85°C) - Best Working Temperature 77℉ (25℃)
- Warranty 12 Months
In the Box
Mega 3 Power Station ×1
AC Charging Cable ×1
Anderson to Anderson Cable ×1
7909 to Anderson Charging Cable ×1
Car to Anderson Charging Cable ×1
MC4 to Anderson Charging Cable ×1
User Manual ×1
Warranty Card ×1
FAQ
Can I use third party solar panel?
Most of the solar panels on the market are compatible, but you need to check whether the specifications and plug are matched (Within 150V, and the connection port is Anderson), you also can feel free to contact us via email before connecting them.
Actually, we suggest customers connect the OUPES solar panel with the OUPES solar generator, as there is already a solution provided in the generator and also the third-party solar panel.
Different companies' solutions may conflict, causing charging not to be done as efficiently as desired although they are universal.
Can I use a third party expanded battery?
No, the Mega 3 can't be expanded with third party battery. Please choose B2 expanded battery with it.
How do I know if the Mega 3 can power my device?
The OUPES Mega 3 can run any device that requires less than 150V and 3600W. You can calculate the charge time using the following formula: 3072Wh* 0.85 / operating power of your device.
What types of battery does OUPES use?
LiFePO4 - The Battery is estimated to have over 80% of your original capacity after 3500 cycles, with a gradual reduction after that. (Note: this doesn't mean the battery only has a 3500 cycle life span. It means that up until 3500 cycles, the unit can perform at its best. However, due to battery degradation there will be a gradual decline in performance after 3500 cycles.)
It has 6 times of longer lifespan than ordinary lithium batteries. LiFePO4 battery is much safer, more stable and more eco-friendly with no heavy metal elements that are harmful to people.
Does it support pass-through charging?
Yes, the OUPES Mega 3 supports pass-through charging without damaging the battery.
Is it waterproof? Is it fireproof?
OUPES Mega 3 is not waterproof. Please make sure to shelter it from rain.
The outer case of our products is made of fireproof material UL 94-V0.
Does the OUPES Mega 3 package come with all the charging cables?
Yes, the OUPES Mega 3 package will come with all the charging cables, you don't need to purchase any extra cables.
Do you charge shipping fee?
We provide free shipping service in the continental United States. The prices on our website will deliver the product to your door
Is the solar panel waterproof? Can I use an extension cable?
We have waterproof treatment for solar panels, but I do not recommend you use them in the rain. Portable solar panels cannot be fully waterproofed like hard solar panels. Long-term exposure to rain may reduce cell efficiency. The length of the solar charging cable is 16ft long. We also provide the extensions on the website. Please note that the charging efficiency may be reduced due to the charging cable being prolonged. It might require more time to finish charging with extension cables.
