TL;DR / Key Takeaways
- Yes — grounding your home battery backup system is essential for safety and regulatory compliance.
- Proper grounding prevents electrical shocks, fire hazards, and system malfunctions.
- Whether off-grid or grid-tied, grounding ensures your system operates safely and efficiently.
- Always follow the National Fire Protection Association (NFPA) and OSHA safety standards for installation.
Introduction
As home energy storage systems become increasingly popular, more homeowners are asking: “Do I need to ground my home battery backup?” Whether you’re installing a full solar-plus-storage system or using a compact portable power station from OUPES, grounding is a key step that ensures both personal safety and equipment protection.
Grounding may sound technical, but it’s essentially about connecting your electrical system to the earth — providing a safe path for fault currents to dissipate. This guide explains why grounding matters, when it’s required, how to do it correctly, and what scenarios apply to both home systems and portable solar generators.
What Is Grounding and Why Does It Matter?
1. The Purpose of Grounding
Grounding connects the electrical components of your battery system to the earth using a conductive rod or plate. This simple step prevents dangerous voltage build-up, reduces fire risks, and protects people and devices from electrical shock.
2. Electrical Safety and Stability
Without grounding, a fault or power surge could energize exposed metal parts, creating a shock hazard. By grounding the system, you give stray electricity a safe path back to the ground instead of through your body or sensitive electronics.
3. Regulatory Compliance
In the United States, grounding is required under the National Electrical Code (NEC). Section 250 of NEC mandates grounding for most electrical systems, including renewable energy and battery storage setups.
How Grounding Works in a Home Battery Backup System
1. The Basic Setup
A grounded system connects the battery negative terminal or chassis to an earth ground rod (usually copper). This connection is often routed through the inverter or a grounding bus bar to ensure consistency across the system.
2. Common Components Involved
| Component | Grounding Function |
|---|---|
| Battery Pack | Protects against static discharge or internal faults. |
| Inverter | Provides a reference point between DC and AC circuits. |
| Solar Charge Controller | Stabilizes voltage levels and prevents overcurrent damage. |
| Grounding Rod | Dissipates fault current safely into the earth. |
3. Grid-Tied vs. Off-Grid Grounding
Grid-tied systems must adhere to both local utility and NEC standards since they interact with public power networks. Off-grid systems, such as remote cabins or RV setups, often use independent grounding rods but must still follow basic safety codes.
When You Need to Ground Your Home Battery System
1. For Grid-Connected Installations
If your battery backup connects to the main household electrical panel, grounding is mandatory. This ensures fault currents do not backfeed into the utility grid, preventing electrocution risks for maintenance personnel.
2. For Off-Grid or Portable Systems
Even in off-grid setups, grounding is recommended — especially for high-power systems. Portable solar generators, such as OUPES units, are typically designed with built-in safety protections and don’t require manual grounding under normal operation. However, when powering sensitive electronics or connecting multiple units, grounding may still improve performance stability.
3. For Metal Enclosure Systems
Any metallic chassis or housing used in your setup must be grounded. This prevents static buildup and minimizes shock hazards in humid or lightning-prone environments.
Benefits of Proper Grounding
| Benefit | Description |
|---|---|
| Safety | Reduces electrical shock risks and system fires. |
| Stability | Maintains consistent voltage levels and minimizes power surges. |
| Compliance | Ensures adherence to NEC, NFPA, and OSHA safety codes. |
| Equipment Longevity | Protects inverters, batteries, and wiring from voltage fluctuations. |
| Performance | Improves signal reliability in systems with communication circuits. |
Step-by-Step: How to Ground a Home Battery Backup
1. Identify the Grounding Point
Choose a clean, dry location near your inverter or battery cabinet for your grounding rod. Use copper or galvanized steel rods, typically 8–10 feet long.
2. Connect Grounding Wire
Use #6 or #8 AWG copper wire to connect the system’s grounding terminal to the rod. Secure the connection using a grounding clamp approved for electrical installations.
3. Test the Ground Resistance
Use a ground resistance tester to verify that resistance is below 25 ohms — a benchmark suggested by the IEEE. If resistance is too high, install an additional rod spaced 6 feet apart and bond them together.
4. Label and Inspect
Label the grounding connection for maintenance visibility and have a certified electrician inspect your setup for NEC compliance.
Scenarios Where Grounding Becomes Critical
1. During Lightning or Power Surges
A grounded system provides a low-resistance path for high voltage from lightning strikes, protecting your batteries and inverter from catastrophic failure.
2. In High-Humidity or Coastal Environments
Grounding helps reduce corrosion-related current leaks caused by moisture, ensuring long-term system reliability.
3. When Using Multiple Battery Units
If your home uses a modular setup (e.g., multiple OUPES battery units), grounding them to a common bus ensures balanced voltage levels and synchronized performance.

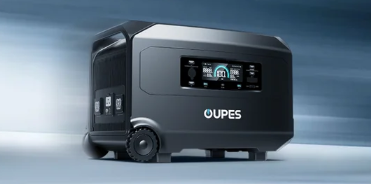

Grounding and Portable Power Stations
Portable solar generators — such as OUPES power stations — are designed for safe, plug-and-play operation without external grounding. They feature built-in BMS protection, overload prevention, and surge control. However, when integrating these portable units into a semi-permanent off-grid cabin or backup circuit, grounding may still be advisable for safety and regulatory compliance.
Expert Recommendations
- Always consult a licensed electrician when connecting a home battery system to your electrical panel.
- Follow NEC and National Renewable Energy Laboratory (NREL) guidelines for installation and inspection.
- Use corrosion-resistant materials for grounding in outdoor installations.
- Inspect your ground connections annually or after severe weather events.
FAQ
1. What happens if I don’t ground my home battery system?
Skipping grounding increases the risk of electric shock, inverter damage, and regulatory violations. In worst-case scenarios, it can cause fires during fault conditions.
2. Do I need to ground a portable solar generator?
Most portable systems from OUPES come with integrated safety systems and don’t require additional grounding. Still, grounding is recommended for stationary or high-power use.
3. Can I ground my system myself?
Yes, if you understand electrical safety standards. However, professional installation is strongly advised to meet NEC and local electrical codes.
4. Does grounding affect performance?
Yes. Proper grounding reduces interference, stabilizes current flow, and improves communication between connected devices.
5. How often should I test the grounding system?
Once a year or after severe storms. Ground resistance testing ensures your backup system remains safe and effective over time.
Conclusion
Grounding your home battery backup isn’t just a technical detail — it’s a vital step that ensures safety, performance, and compliance. Whether you’re building a large grid-tied system or supplementing power with a portable solar generator from OUPES, proper grounding will protect both your home and investment for years to come.
