As solar energy becomes increasingly popular for camping, home backup, and emergency preparedness, one technical term appears frequently: MPPT. Many users see it listed in specifications but are unsure what it actually does or why it matters. In reality, an MPPT solar charge controller plays a critical role in how efficiently your solar panels convert sunlight into usable electricity.
This article explains MPPT technology in a clear, user-focused way—what it is, how it works, and why it makes a real difference in everyday solar-powered scenarios.
Understanding the Basics of Solar Charge Controllers
A solar charge controller sits between solar panels and a battery system. Its primary job is to regulate how electricity flows from the panels into the battery, preventing overcharging, overheating, and energy loss.
Without a charge controller, solar panels could deliver inconsistent voltage and current, damaging batteries or reducing their lifespan. For portable power stations and solar generators, the charge controller is a core component that determines charging speed, safety, and efficiency.
What Is an MPPT Solar Charge Controller?
MPPT stands for Maximum Power Point Tracking. An MPPT solar charge controller continuously tracks the optimal voltage and current combination at which a solar panel produces maximum power.
Solar panels do not output a fixed voltage. Their performance changes constantly based on:
- Sunlight intensity
- Panel temperature
- Shading and cloud cover
- Time of day
An MPPT controller dynamically adjusts to these changes, ensuring the system captures as much available solar energy as possible at any moment.
How MPPT Technology Works
To understand MPPT, imagine solar panels as flexible energy sources rather than fixed-output devices. Each panel has a “maximum power point,” which shifts throughout the day.
An MPPT controller:
- Monitors real-time voltage and current from solar panels
- Calculates the point where power output (watts) is highest
- Converts excess voltage into additional current
- Delivers optimized power to the battery system
This conversion process allows higher-voltage solar panels to efficiently charge lower-voltage battery systems without wasting energy.
MPPT vs Other Charging Technologies
Not all solar charge controllers operate the same way. Understanding the difference helps explain why MPPT is preferred in modern solar generators.
| Feature | MPPT Controller | Basic Voltage Regulation |
|---|---|---|
| Efficiency | High (up to 30% more energy capture) | Lower |
| Adaptability | Automatically adjusts to conditions | Fixed operating range |
| Performance in Low Light | Excellent | Limited |
| Best Use Case | Portable, off-grid, backup power | Small, basic systems |
For users relying on solar charging in unpredictable conditions, MPPT delivers a noticeable performance advantage.
Real-World Scenarios Where MPPT Matters
Camping and Outdoor Use
When camping, sunlight conditions are rarely perfect. Trees, clouds, and changing angles reduce solar panel efficiency. An MPPT controller helps extract usable energy even during partial shading or early morning and late afternoon hours.
This means:
- Faster charging during short daylight windows
- More reliable power for fridges, lights, and devices
- Less dependence on perfect panel placement
Home Backup and Emergency Power
During power outages caused by storms or grid failures, solar input may be the only energy source available. MPPT controllers maximize solar harvesting, helping restore battery capacity quickly when grid power is unavailable.
This is especially important when running:
- Refrigerators and freezers
- Medical equipment
- Communication devices
Off-Grid and Mobile Applications
In off-grid cabins, RVs, or mobile work setups, solar conditions vary daily. MPPT ensures the system adapts automatically without constant manual adjustment.
For long-term off-grid use, improved efficiency directly translates into greater energy independence.
How MPPT Improves Solar Charging Efficiency
MPPT controllers can improve solar charging efficiency by 15–30% compared to simpler systems. This gain becomes especially noticeable when:
- Panel voltage is significantly higher than battery voltage
- Temperatures are low (which increases panel voltage)
- Solar input fluctuates throughout the day
In practical terms, MPPT means shorter charging times, more usable energy, and better performance in real-world conditions.

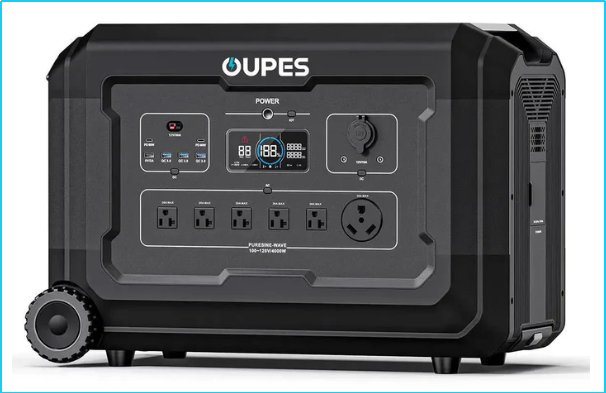

MPPT Technology in OUPES Power Stations
OUPES integrates advanced MPPT solar charge controllers into its portable power stations to ensure efficient and reliable solar charging. This design choice supports:
- Wide solar voltage input ranges
- High solar input capacity
- Stable charging under variable conditions
- Long-term battery health
By combining MPPT technology with LFP battery chemistry, OUPES systems are built for frequent charging cycles and long service life.
MPPT Performance in OUPES MEGA Series
| Model | Max Solar Input | MPPT Voltage Range | Charging Scenario |
|---|---|---|---|
| MEGA 1 | 800W | 18–75V | Camping, short-term backup |
| MEGA 2 | 2100W | 18–140V | Family backup, outdoor work |
| MEGA 3 | 2100W | 18–140V | RV, off-grid, extended use |
| MEGA 5 | 2100W | 18–140V | Whole-home backup, emergencies |
Common Misunderstandings About MPPT
- MPPT does not create energy; it optimizes existing solar output
- MPPT benefits are greatest in non-ideal conditions
- Higher wattage panels still require proper voltage compatibility
- MPPT works automatically and does not require manual tuning
Understanding these points helps users set realistic expectations and design better solar setups.
Frequently Asked Questions
1. Is MPPT necessary for portable solar generators?
Yes. MPPT significantly improves charging efficiency, especially in changing outdoor conditions.
2. Does MPPT work on cloudy days?
Yes. MPPT adapts to lower and fluctuating solar input better than basic systems.
3. Will MPPT damage my battery?
No. MPPT controllers regulate voltage and current safely to protect batteries.
4. Can MPPT shorten charging time?
Yes. By capturing more usable power, MPPT reduces overall charging duration.
5. Does MPPT increase solar panel lifespan?
Indirectly. Stable operation reduces stress on panels and system components.
6. Is MPPT useful in winter?
Yes. Cold temperatures increase panel voltage, where MPPT is especially effective.
7. Does MPPT require maintenance?
No. It operates automatically without user intervention.
8. Can I combine MPPT with AC charging?
Yes. Hybrid charging systems use MPPT alongside AC input for faster replenishment.
Final Thoughts
An MPPT solar charge controller is one of the most important technologies behind efficient solar power systems. By intelligently tracking and converting solar energy, MPPT maximizes every ray of sunlight—whether you are camping, preparing for emergencies, or living off-grid. Choosing a power station with advanced MPPT integration ensures faster charging, better reliability, and greater energy independence over the long term.
